Model Compilations

Convert models registered in the Model Registry into NPU-specific binaries automatically. When conversion completes, the resulting artifact is auto-registered in the Model Registry and can be deployed immediately.

---

Prerequisites

• A model and a version must already be registered in the NuFi Model Registry.
• The target artifact must be an original artifact whose platform is unset (treated as a GPU source) or gpu (format e.g., safetensors).
• The cluster must have sufficient CPU and memory resources.

---

How to Start NPU Compile

NPU compilation starts from the model version detail page.

1. In the left sidebar, click Models to go to the model list page.
2. Go to the model version detail page you want to compile.
3. From the version detail page, you can start a compilation in two ways:
   • Click the Compile button in the Compilations tab
   • Click the icon on the right of an original artifact row (platform empty or gpu) in the Artifacts tab

To generate multiple compile option candidates automatically and choose the best artifact with evaluation metrics, use Compile Option Optimizer.

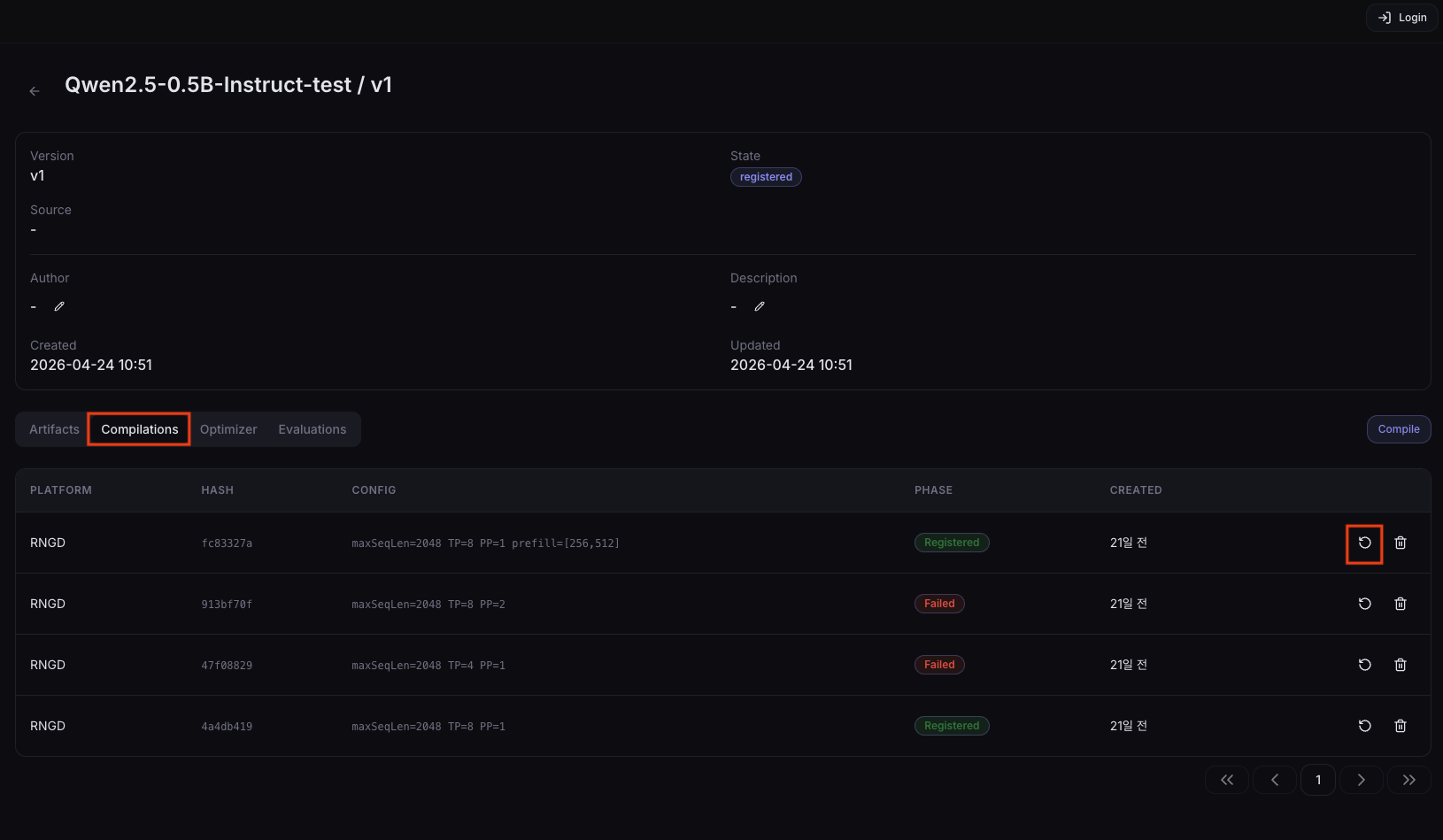

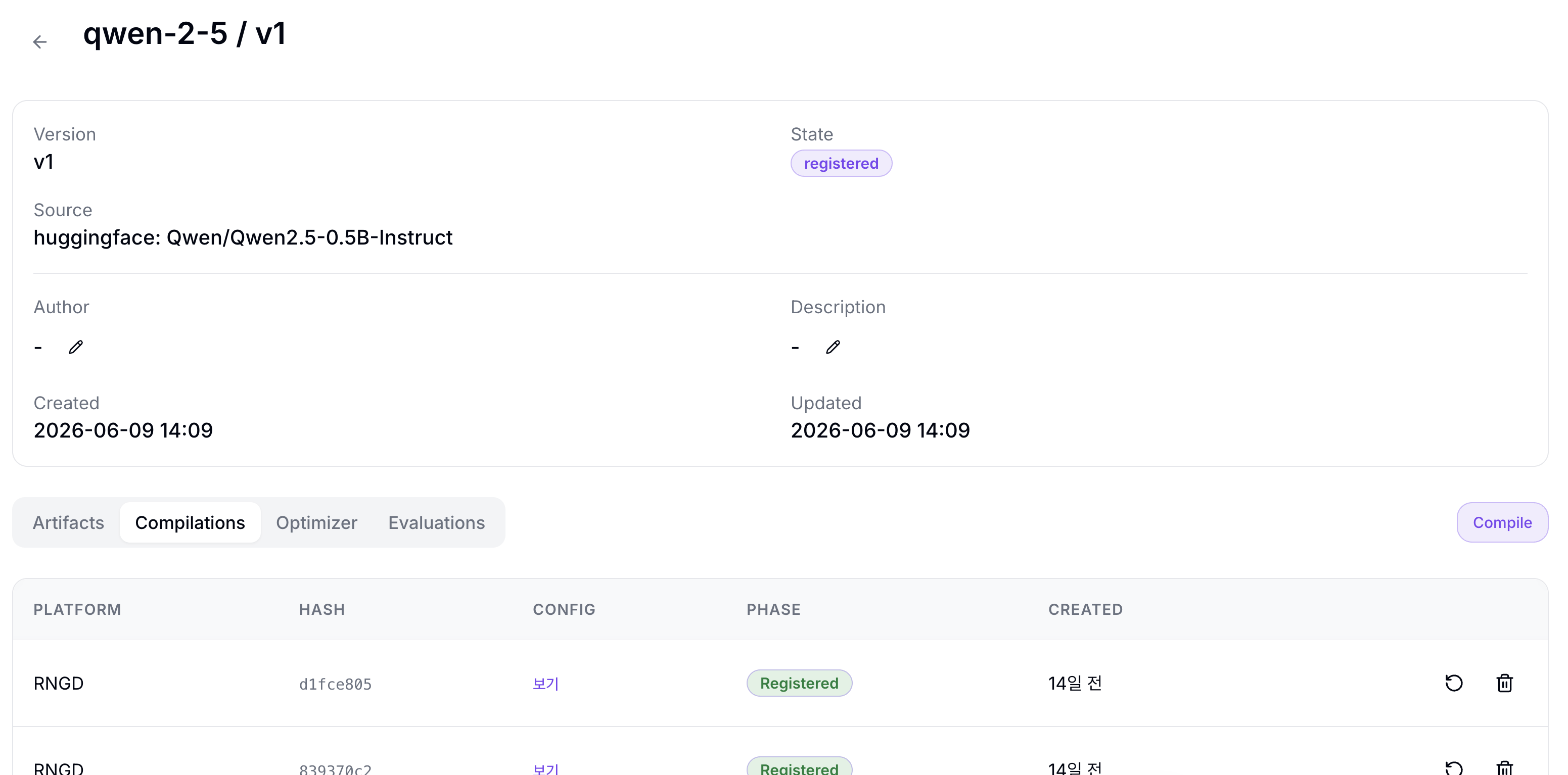

NPU Compile List

In the Compilations tab of the version detail page, you can see the compilation history for that version.

Columns

Column	Description
PLATFORM	Target NPU platform
HASH	Hash of the compile options (identifies same-option runs)
CONFIG	Shows a View button for entries with saved compile options. Click it to open the Compile Settings dialog and review Max Seq Len, Tensor Parallel, Pipeline Parallel, Prefill Buckets, Decode Buckets, and Tokenwise Seq Lens.
PHASE	Current pipeline state
CREATED	Creation time

Status

Phase	Description	Recovery
Pending	The pipeline is waiting to be scheduled	Check that the cluster has sufficient resources.
Running	The compilation step is in progress	—
Succeeded	Compile and verification steps complete. Model Registry registration proceeds automatically (transitions to Registered when done).	—
Failed	One or more steps failed	Check the failing step's logs on the detail page and re-run using the retry button.
Registered	The compilation result has been registered in the Model Registry	—

Action Icons

The icons on the right of each row, from left to right:

Icon	Action	Description
	Re-compile	Opens the creation dialog pre-filled with this pipeline's compile options. The existing run is preserved in history. Disabled while the run is Pending/Running or when the entry has no saved compile options.
	Delete	Deletes this compilation history entry. Click Delete in the confirmation dialog to permanently delete the pipeline and history entry.

---

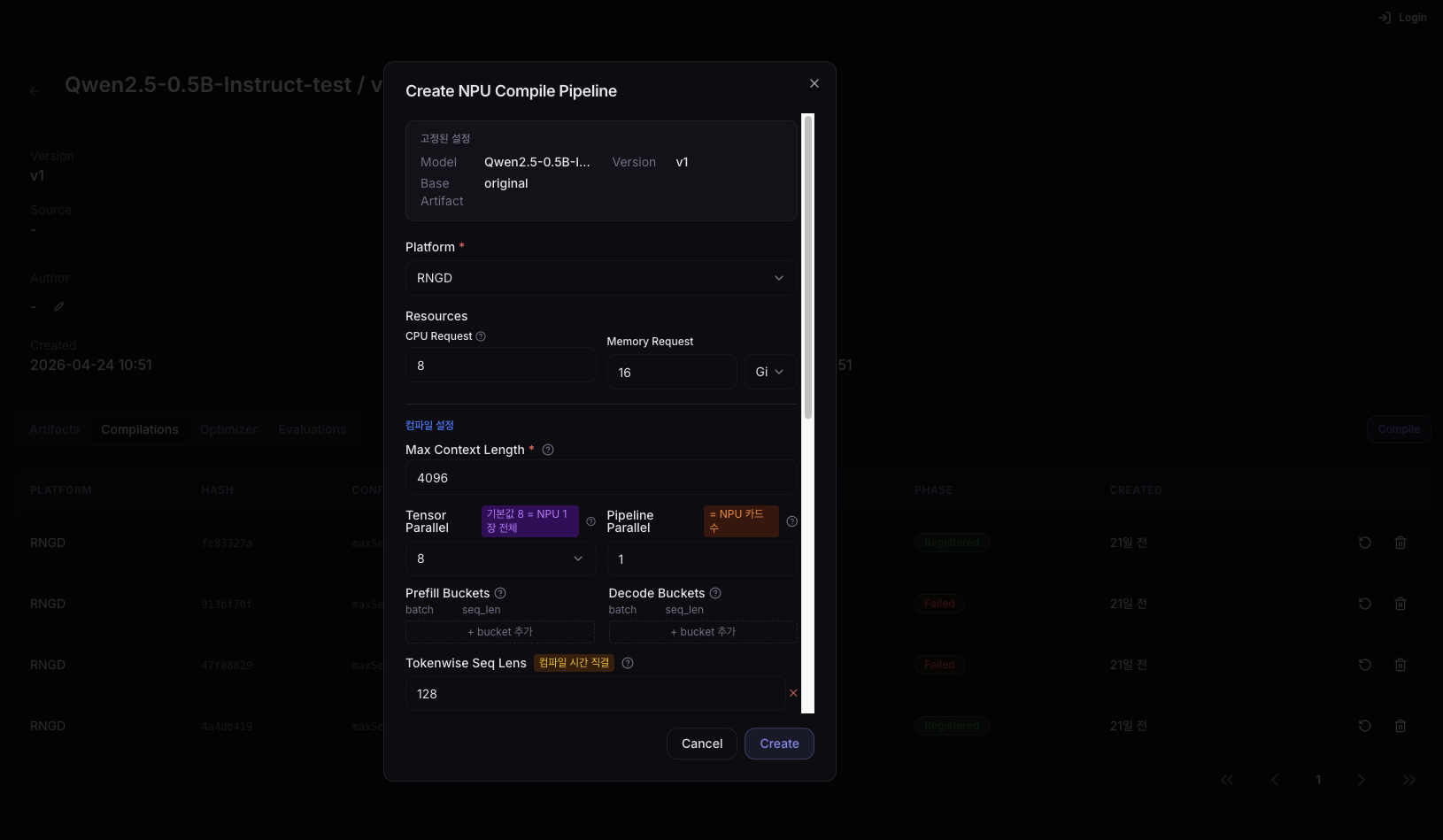

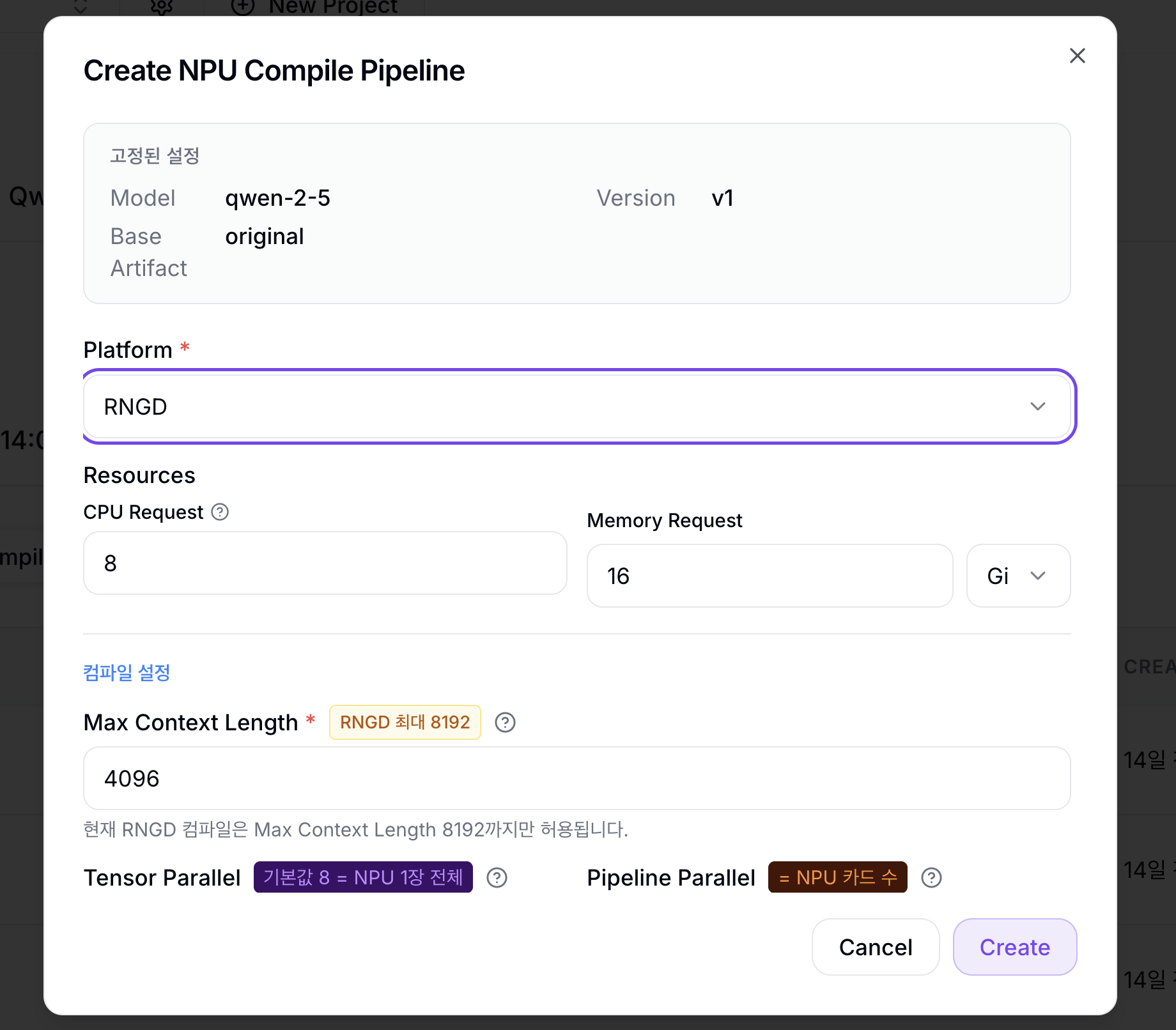

Create a Pipeline

Click the Compile button to open the creation dialog.

Pinned Settings

The pinned settings area at the top of the dialog shows the compilation target information determined at entry time. The user cannot change these.

Item	Description
Model	Model name from the version detail page where you entered
Version	The version you entered
Base Artifact	The artifact to convert. The original artifact for that version (e.g., original) is used.

Platform Selection

Field	Description
Platform *	Select the target NPU platform (e.g., RNGD)

Resource Settings

Field	Description
CPU Request	Number of CPU cores to allocate to the compile Job
Memory Request	Memory size to allocate to the compile Job

Compile Settings

Field	Description
Max Context Length *	Maximum token count allowed during serving. Longer values increase memory requirements. The RNGD platform currently supports up to 8192; entering a larger value blocks creation.
Tensor Parallel	Number of PEs to parallelize the tensor across. Choose 4 or 8 (1 RNGD card = 8 PEs).
Pipeline Parallel	Number of pipeline parallel stages. Distributes model layers across multiple NPUs.
Prefill Buckets	Bucket list for the Prefill stage. Use the + Add bucket button to add rows and enter a batch (batch size) / seq_len (sequence length) pair per row. If left empty, buckets appropriate for Max Context Length are set automatically. Example: batch 1 / seq_len 512
Decode Buckets	Bucket list for the Decode stage. Add rows with + Add bucket and enter a batch (batch size) and seq_len (context length) pair for each row. Set automatically if left empty. Example: batch 1 / seq_len 1024
Tokenwise Seq Lens	List of memory-space window sizes used during token generation. Directly affects compile time. Typically include powers of 2 from 128 up to Max Context Length. Example: 128,256,512,1024,2048,4096

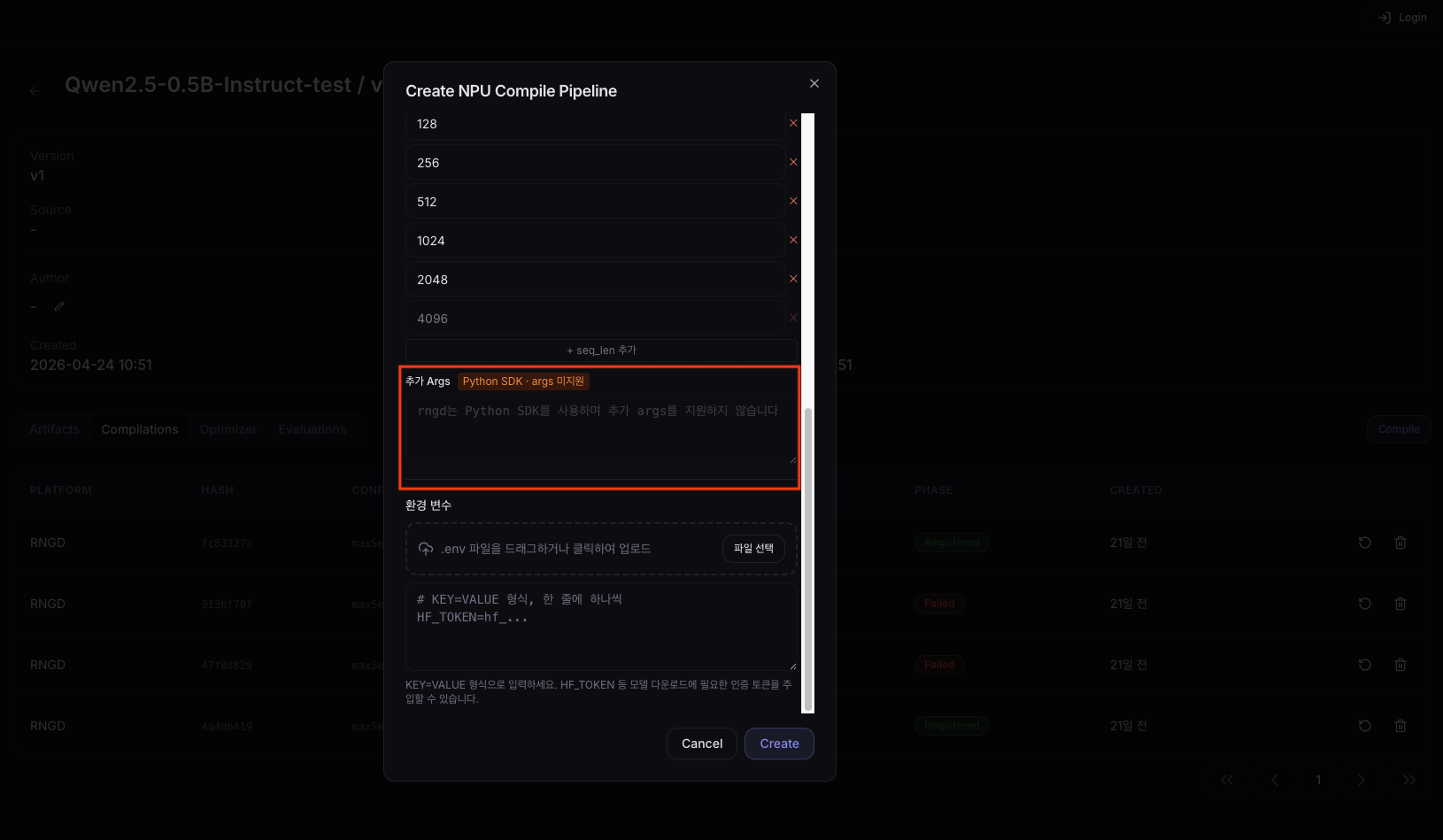

Additional Args	Additional arguments to pass directly to the compiler. RNGD does not currently support additional arguments.
Environment Variables	Environment variables to inject into the compile Job container. Enter as KEY=VALUE, one per line, or drag and upload a .env file.

How to choose compile settings

• Tensor Parallel / Pipeline Parallel: Set these to match the number of NPU devices you have. If you use a single NPU, set Tensor Parallel to 8 and Pipeline Parallel to 1. RNGD has 8 PEs per NPU.
• Prefill / Decode Buckets: Set these based on the expected input length distribution of your actual service. More buckets mean longer compile time and larger binary size.

When you click the Create button, the pipeline starts.

---

Pipeline Detail

Click a pipeline row in the list to navigate to the detail page.

The top area shows summary information for the compile run.

Item	Description
Model	Model used for the compile run
Version	Target model version
Platform	Target NPU platform
Resources	CPU and memory requested for the compile Job
Created	Pipeline creation time

If the artifact was registered successfully, a link to the produced artifact appears below the summary information.

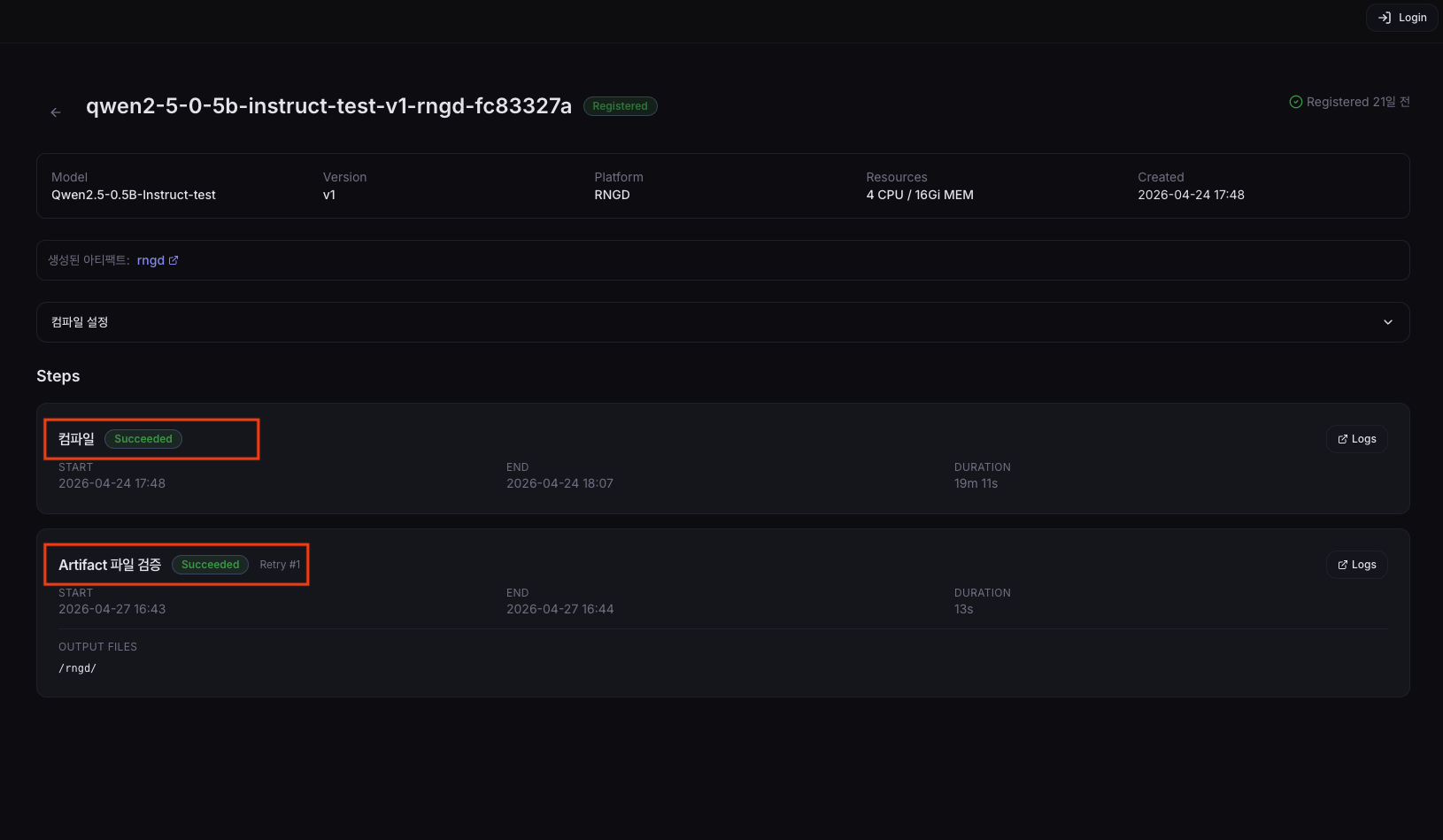

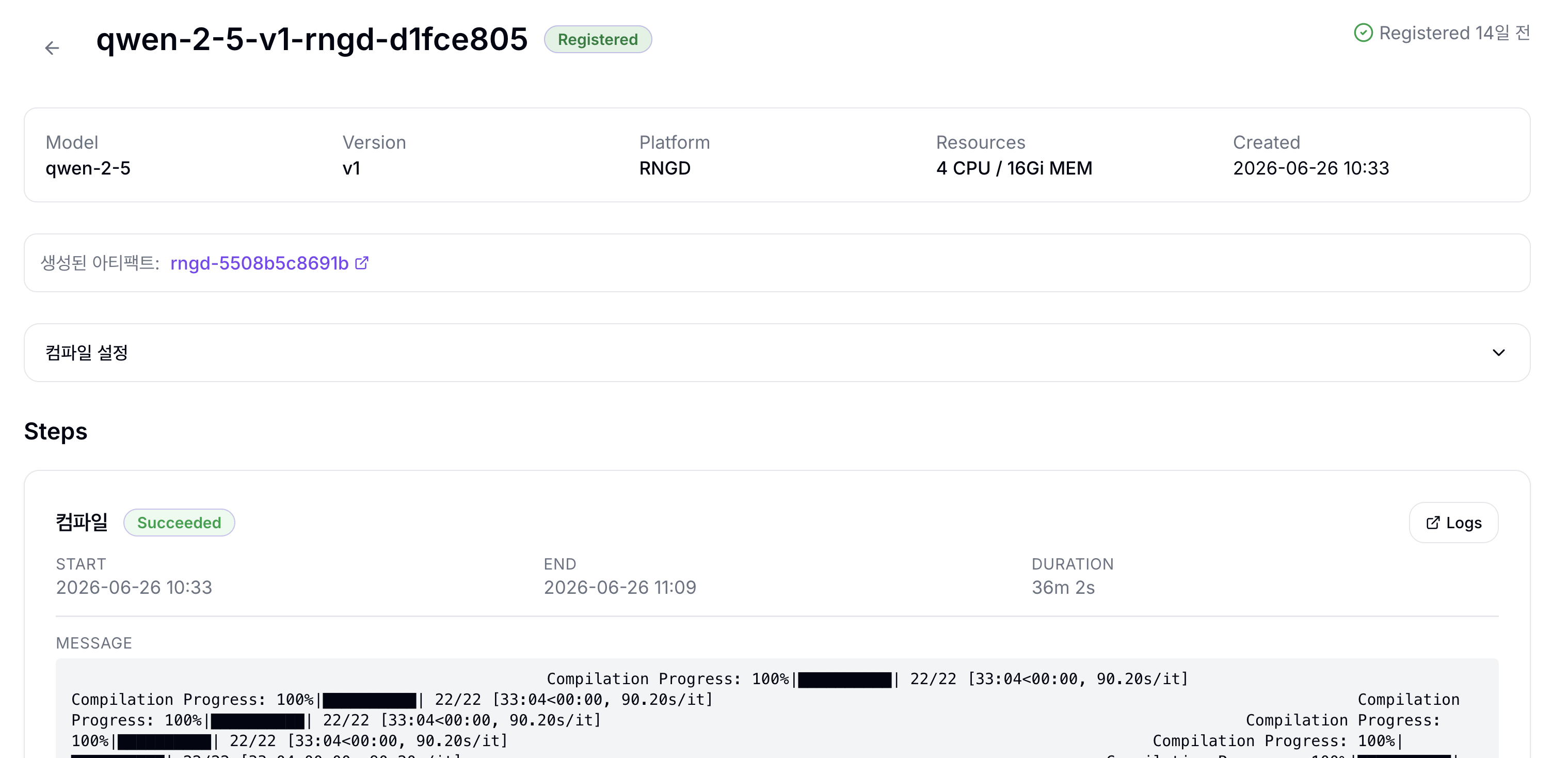

The detail page shows step-level status in the Steps section.

Step	Description
Compile	Convert the model into the NPU-specific binary.
Artifact file verification	Only verifies that the artifact files produced by the Compile step exist at the expected paths. Does not load onto the actual device or perform inference.

Each step card shows the following information.

Item	Description
START	Step execution start timestamp
END	Step execution end timestamp
DURATION	Time the step took to execute
MESSAGE	Step message or error output. Shown only when present.
OUTPUT FILES	List of output files produced by the step. Shown only for steps with output files.
Logs	Button for detailed logs. Shown only when a log URL can be built.

The step status is shown as a badge next to the step name (Waiting / Pending / Running / Succeeded / Failed). Waiting means the step is waiting for the previous step to complete.

Per-step retry: When the pipeline is in a Failed state overall, the Retry button on each failed step card can re-run that step independently. For example, if only the Artifact file verification step failed, you can retry only the verification step without re-running the Compile step.

Auto registration after compile completes

When both the Compile and verification steps reach the Succeeded state, the compiled NPU artifact is automatically added to the original version in the Model Registry. After that, you can run Quick Deploy with that artifact.

---

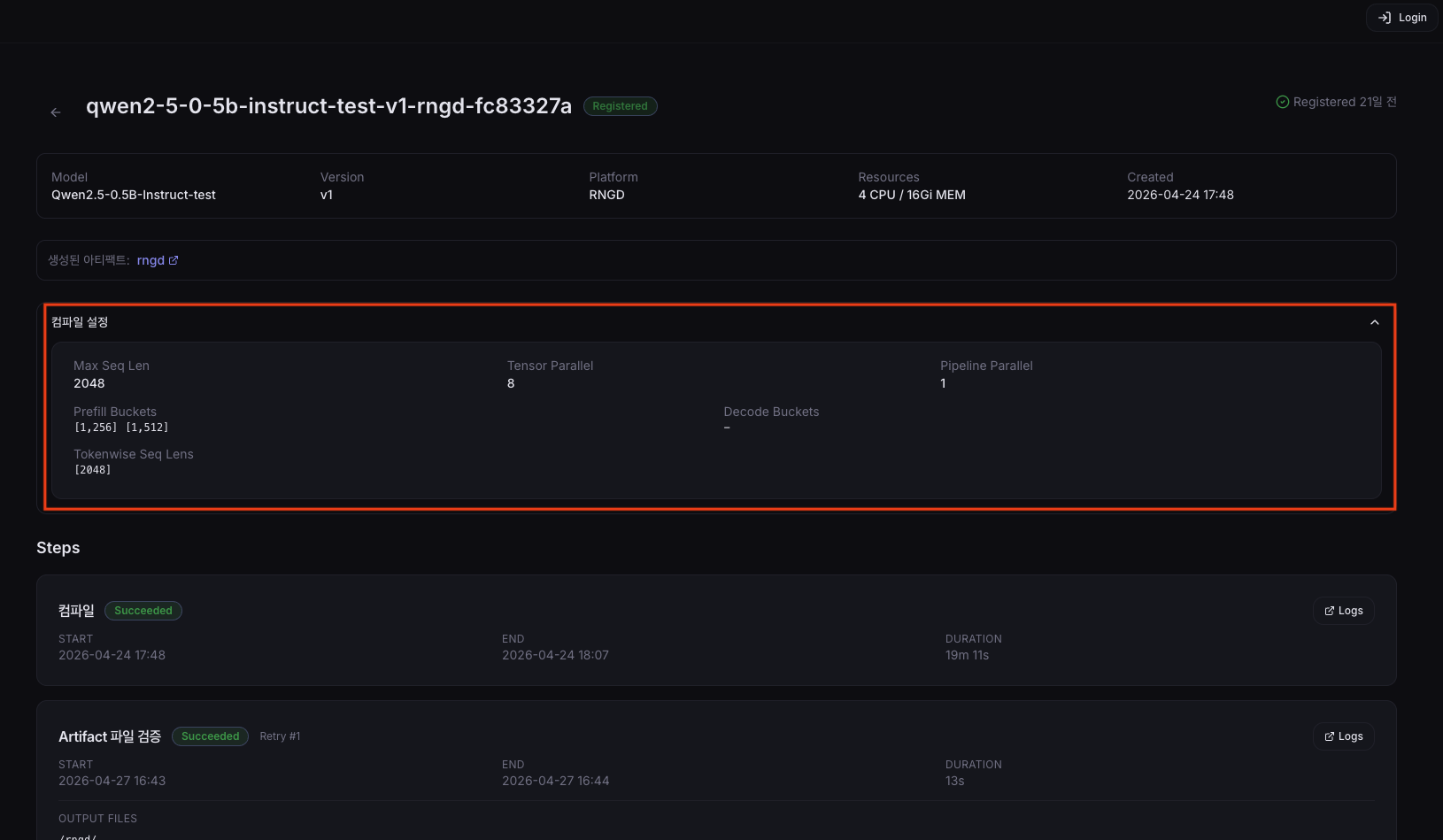

Check Compile Settings

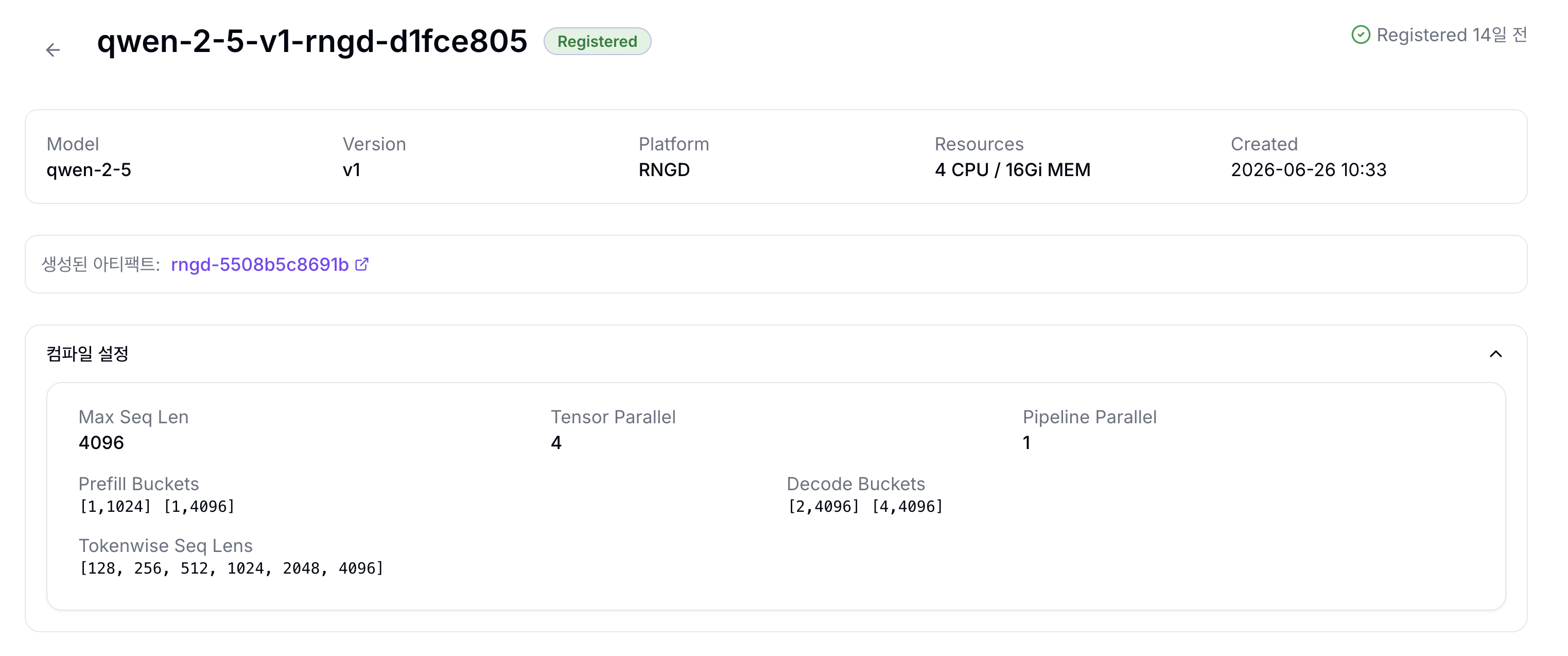

Below the top summary information on the detail page, click the Compile Settings accordion to expand it and review all of the compile options used when the pipeline was created (collapsed by default).

Field	Description
Max Seq Len	Maximum context token count set at compile time
Tensor Parallel	Number of PEs for tensor parallelism
Pipeline Parallel	Number of pipeline parallel stages
Prefill Buckets	Sequence-length bucket list for the Prefill stage
Decode Buckets	Batch-size / context-length bucket list for the Decode stage
Tokenwise Seq Lens	List of memory-space window sizes for token generation. Shown only when present.
